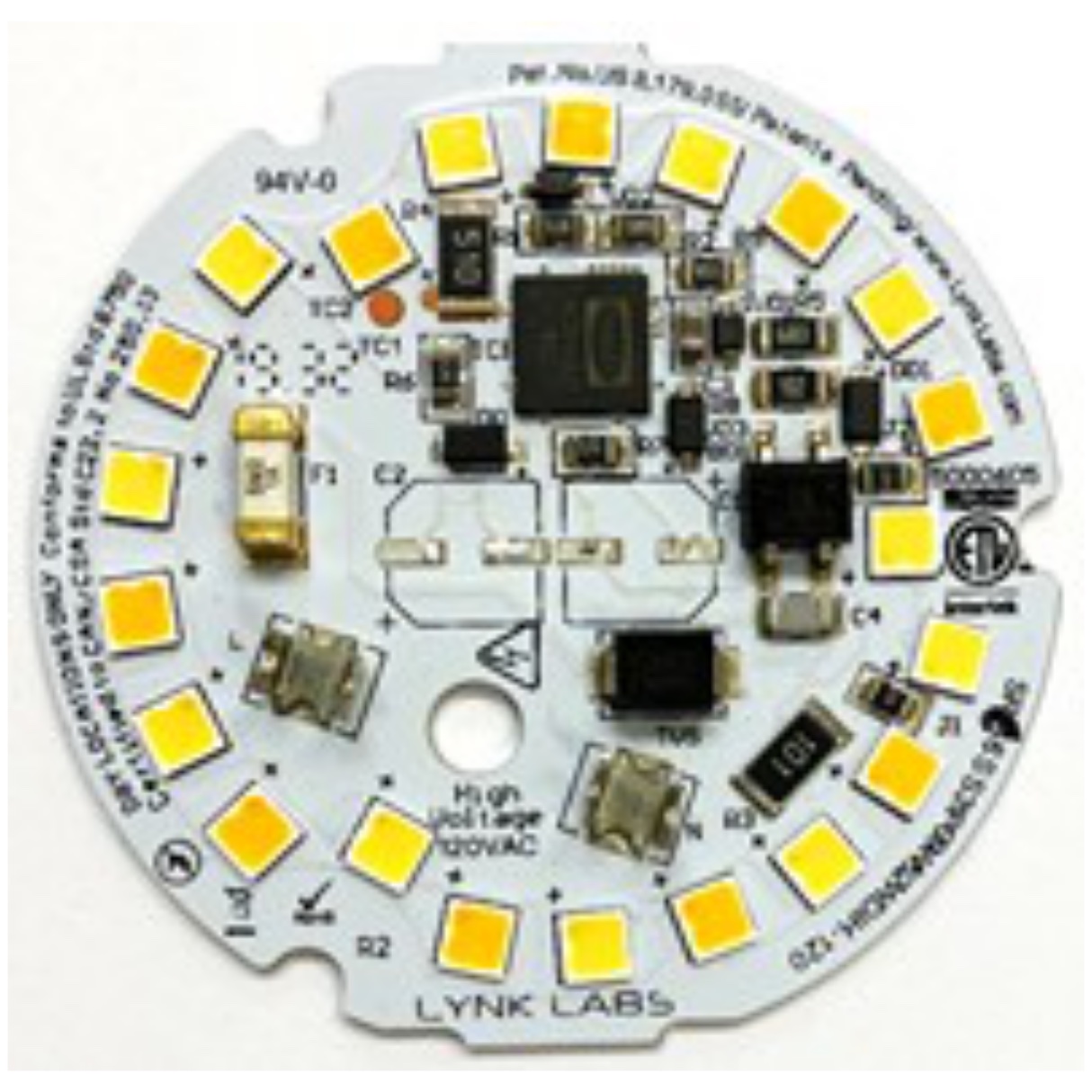

SnapBrite® SRC46-14W-120

SnapBrite® SRC46-14W-120

120Vac Direct Connect - DoB™ LED Module Phase-Cut - AC LED Module | Triac Dimmable Warm-on-Dim™ or Single CCT’s | 46mm (1.81”) Diameter, 5.25mm (0.21”) Height | 14-Watt, 1,300 Lumen, 92.8 LPW

SnapBrite® SRC46-14W-120 Features

  • 14W, ≥1,300 lumens @ 3000K @ 90 CRI, ≥100 Lumens per Watt
  • Connects to Direct Mains; 90 to 132 Vac – No External Drivers Needed
  • Low Profile; 0.21” height
  • Driver on Board™ – Cost/Reliability
  • Compact/Simple Installation
  • Low THD
  • Standard CCT’s; 5000K, 4000K, 3500K, 3000K, 2700K, and 2200K
  • Warm on Dim Options; 3000K to 2200K, or 2700K to 2200K
  • ETL Recognition to UL8750 & CAS; C22.2 #250 Pending.
  • Patent Protected Circuit-to-System

SnapBrite® SRC46-14W-120 Applications

  • Down-Lights/ Flush Mounts
  • Sconces/Pendants
  • Spots & Accent Lights
  • Under Cabinet/Task Lighting
