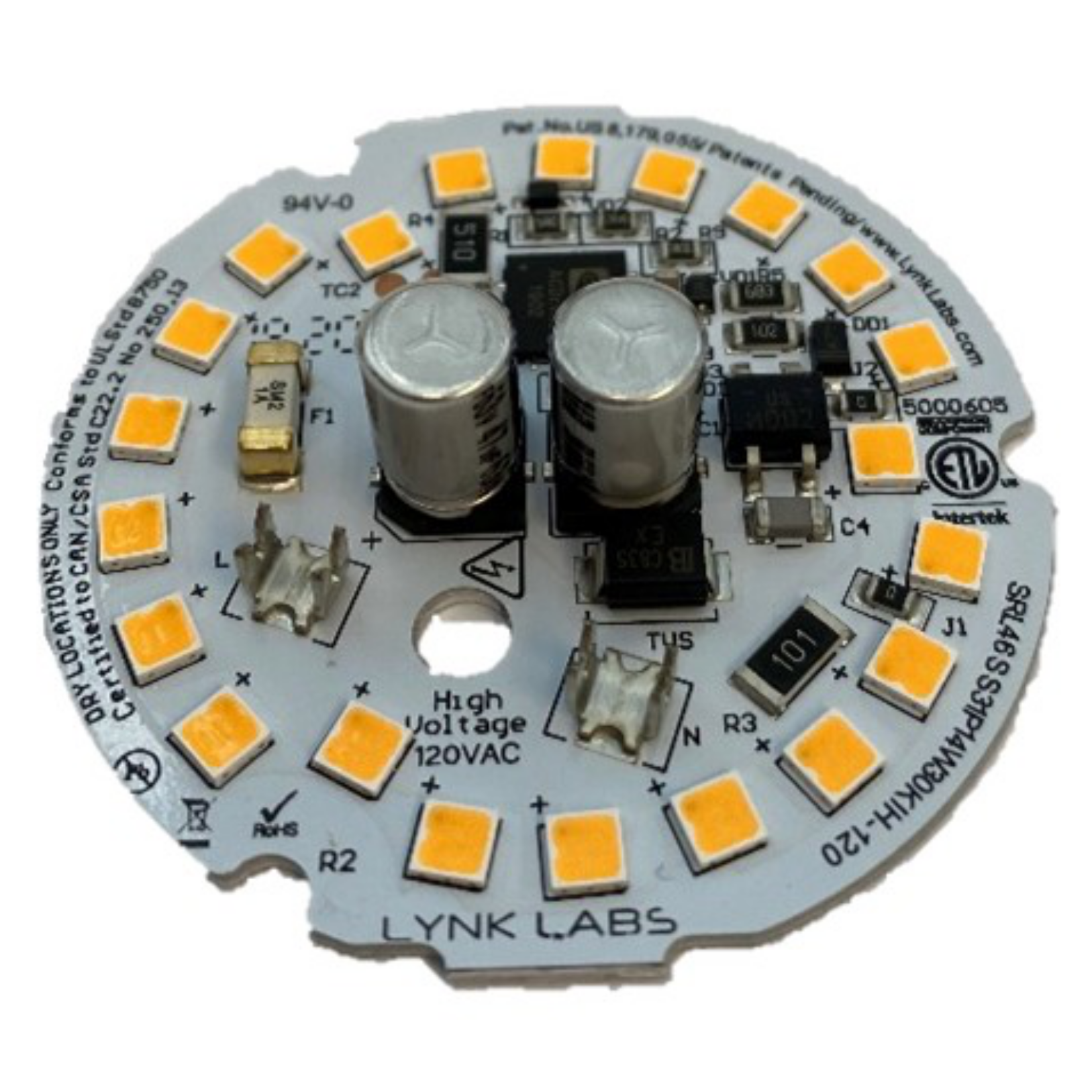

SnapBrite® SRL46-9W-120

SnapBrite® SRL46-9W-120

120Vac Direct Connect - AC LED MODULE | Reduced Flicker Triac Dimmable | Warm-on-Dim or Single CCT | 46mm-D (1.8") x 11.2mm-H (0.44") | 9-Watt, 900 LM

SnapBrite® SRL46-9W-120 Features

  • 9W, ≥900 lumens @ 3000K @ 90 CRI, ≥100 Lumens per Watt
  • Connects to Direct Mains; 90 to 132 Vac – No External Drivers Needed
  • Meets CEC T24 & IEEE-1798 – Low Flicker
  • Driver on Board™ – Cost/Reliability
  • Compact/Simple Installation
  • Low THD
  • Standard CCT’s; 5000K, 4000K, 3500K, 3000K, 2700K, and 2200K
  • Warm on Dim Options; 3000K to 2200K, or 2700K to 2200K
  • ETL Recognition to UL8750 & CAS; C22.2 #250 Pending.
  • Patent Protected Circuit-to-System

SnapBrite® SRL46-9W-120 Applications

  • Down-Lights/ Flush Mounts
  • Sconces/Pendants
  • Spots & Accent Lights
  • Under Cabinet/Task Lighting
